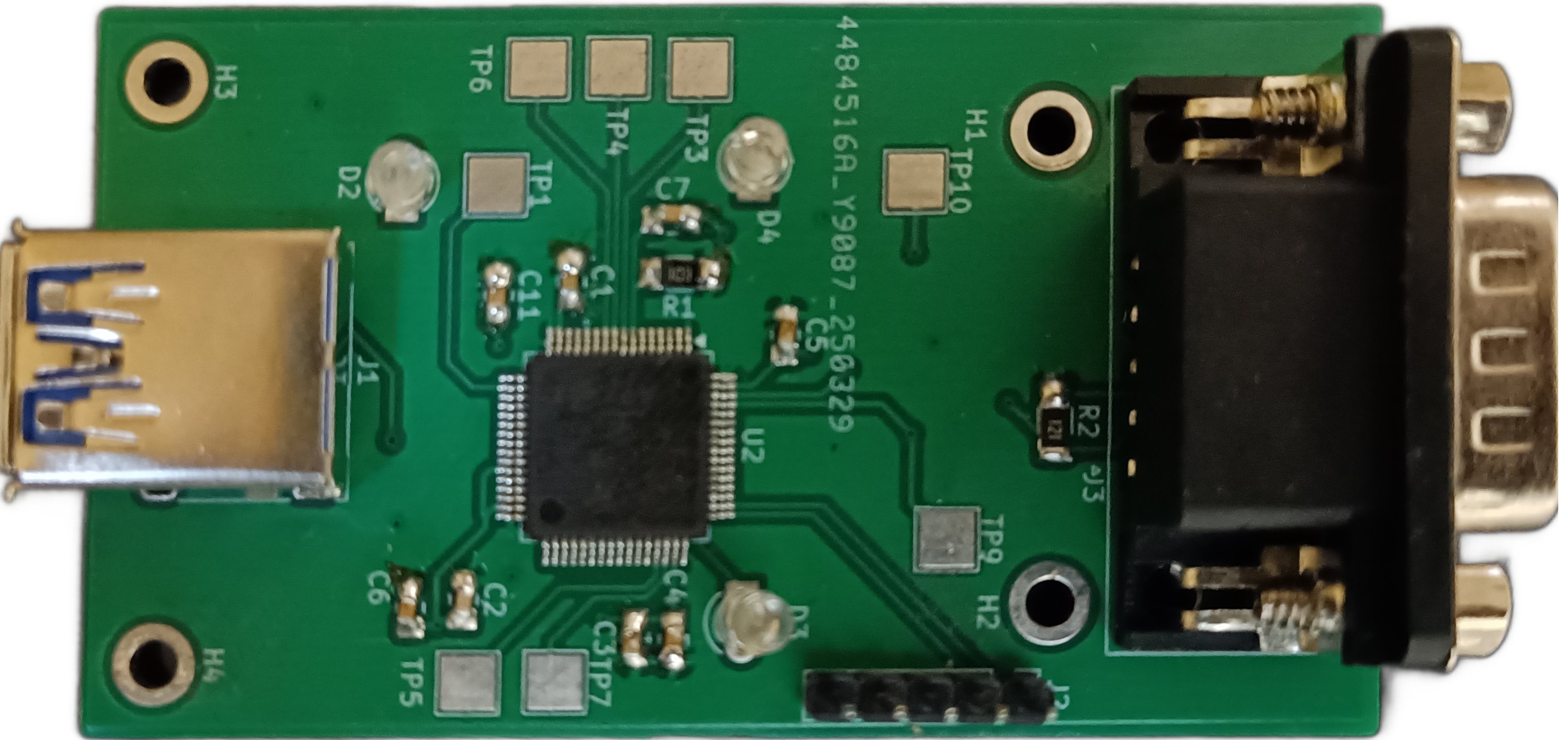

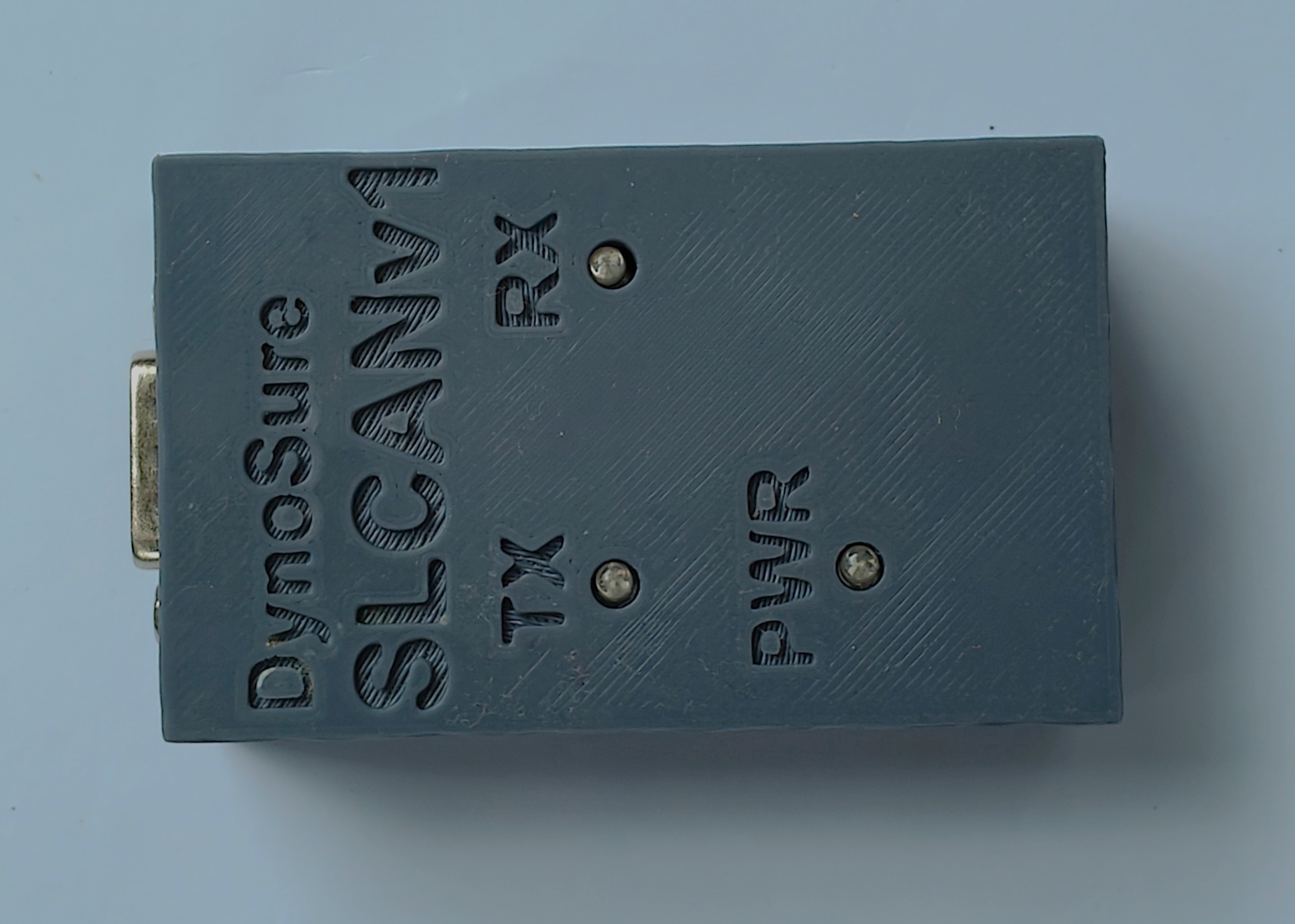

The DynoSure SLCANv1 adapter provides a reliable and convenient connection between a PC and a CAN(Controller Area Network) bus. It is based on the open-source CANable2 firmware and utilizes the Lawicel SLCAN protocol for serial-line CAN communication. It comes with support for BUSMASTER.
Specifications
Microcontroller:
Powered by an STM32G4 series MCU running at 170 MHz, ensuring fast communication and low latency.
Supported CAN Protocols:
CAN 2.0A (11-bit Standard ID), CAN 2.0B (29-bit Extended ID), CAN-FD (Flexible Data Rate) for high-speed applications
USB Interface:
USB 2.0 Full-Speed, Backward compatible with USB 1.1 and forward-compatible with USB 3.0
Bitrate Support:
Standard CAN bit rates: 10 kbps, 20 kbps, 50 kbps, 83.3 kbps, 100 kbps, 125 kbps, 250 kbps, 500 kbps, 750 kbps, 1 Mbps
Power Supply:
Fully powered via USB — no external power required
Thermal Environment:
Designed for extended temperature ranges, making it suitable for industrial and automotive environments
Software & Platform Support
Appears as a virtual COM port — no custom drivers required
Compatible with popular CAN analysis and development tools:
BusMaster, Python (python-can), C/C++ libraries
Supports major platforms:
Windows, Linux
